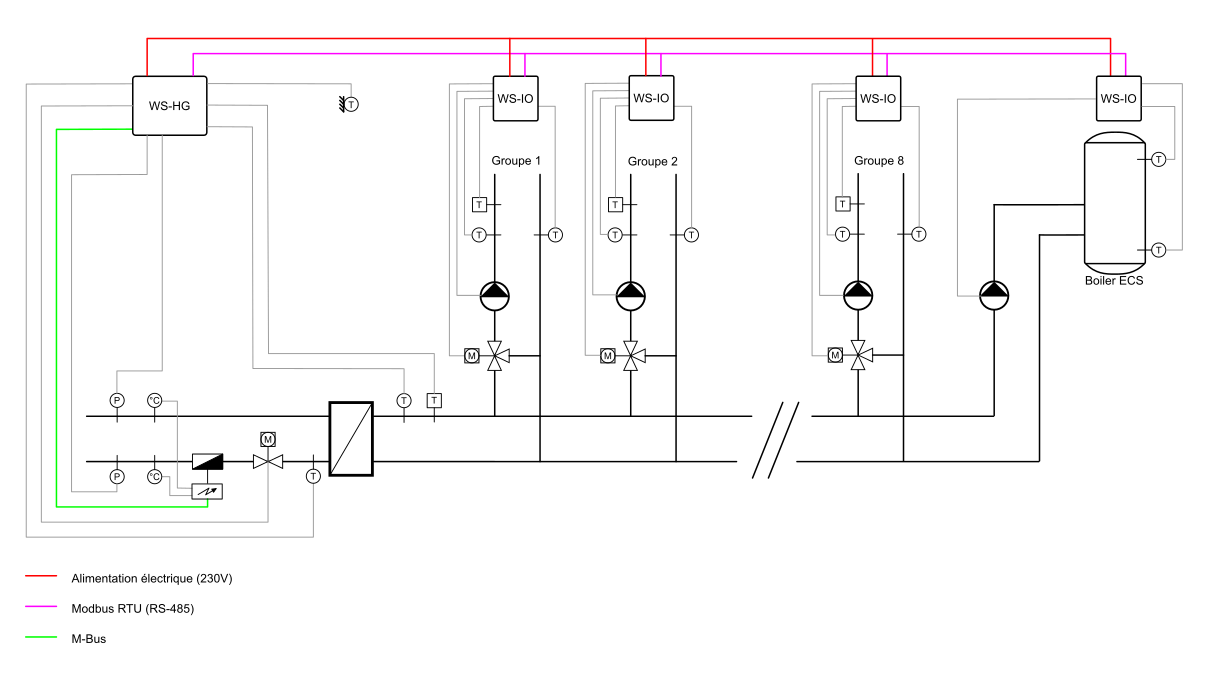

Our WS-SMART-HG solution controls the entire heating plant with precision and optimal energy efficiency. A control system designed for energy performance, precision and durability — suited to commercial buildings, public authorities and MCR/BMS modernisation projects.
Control & regulation of the heating plant
✔️ Remote heating (1 or 2 heat exchangers) or traditional heating
✔️ Up to 8 heating groups and 2 DHW boilers
✔️ 2/5-point curves, smart cascade, anti-legionella
✔️ Priority DHW management with energy optimisation
✔️ Automatic summer/winter mode with smart priority management
✔️ Multi-generator management (heat pump, gas boiler, biomass, electric resistance)
Supervision & integration
✔️ 100% web-based supervision (secure local or remote access)
✔️ BACnet / Modbus compatible (easy integration into existing BMS)
✔️ Modular, scalable architecture (up to several sub-stations)
✔️ Data logging and built-in energy monitoring
✔️ Detailed alarms with configurable notifications
✔️ Intuitive configuration via interface
Energy efficiency
✔️ Automatic optimisation of supply temperatures based on actual demand
✔️ Power limiting and peak load management
✔️ SG-Ready – Solar surplus contact
✔️ Measurable reduction in energy consumption
Safety, reliability & maintenance
✔️ Built-in safety functions (frost, overheating, sensor fault, pump fault)
✔️ Valve position feedback (detection of manual override or local action)
✔️ Pump control with current monitoring (monitoring, safety, simplified maintenance)
✔️ Fewer short cycles and longer equipment lifespan
✔️ Simple implementation through configuration alone, no custom development required
✔️ Compatible with renovation and replacement of older control systems
👉 Developing a heating plant renovation or modernisation project? Contact us.
